ADES BRO8 RO system

The ADES BRO8 industrial Reverse Osmosis (RO) system, designed by ATS Water Technology Co., Ltd., delivers top-tier water treatment for demanding applications. Built for efficiency and reliability, it features RO membranes with advanced Thin-Film Nanocomposite (TFN) technology from NanoH2O, Pentair’s Codeline pressure vessels, stainless steel high-pressure pumps, and a fully automated control system for seamless operation.

Brand: ATS Water Technology

Product Type: Water treatment systems

PRODUCT FEATURES

NanoH2O 8" spiral-wound RO membranes with TFN technology for superior filtration.
Pentair's Aqualine 5µm high-flow cartridge filters for effective pre-filtration.
Pentair's Codeline FRP pressure vessels for durability and corrosion resistance.
Vertical multistage pump with energy-efficient IE3 motor and variable frequency drive (VFD).
PLC control panel with a 7" touchscreen HMI for easy monitoring.
Automatic flushing system with automated valves for simplified maintenance.
Low-pressure uPVC Piping; High-pressure SUS304 stainless steel piping (Sch10 standard).
Powder-coated steel electrical enclosure with dual-layer door design.
SS400 steel frame with three-layer epoxy coating for rust resistance.
Power supply: 380 – 415V, 3-phase, 50Hz.
JIS-10K flange connections (DIN/ANSI options available).

SPECIFICATIONS

Number of membranes

9 – 120
Number of pressure vessels

3 – 24
Length

5.0 – 7.9 m
Width

1.3 – 2.8 m
Height

2.4 – 3.0 m
Approximate weight

1,330 – 8,360 kg
Permeate flow

7 – 100 m³/h
Recovery

75% (±5%)

The ADES BRO8 RO system offers a reliable, high-quality solution tailored to your water treatment needs. ATS Water Technology shares insights into its design, specifications, benefits, applications, and our expertise in delivering industrial RO systems across Vietnam.

1. System components of the ADES BRO8 industrial RO system

The ADES BRO8 combines premium components for durability and efficiency, ensuring top performance and cost savings:

Vertical multistage pump: Features an IE3 motor with VFD for energy-efficient operation.
NanoH2O RO membranes: 8″ spiral-wound with TFN technology for high salt rejection.
Pentair’s Aqualine filters: 5µm high-flow cartridge filters for reliable pre-filtration.
Pentair Codeline Pressure Vessels: FRP construction withstands high pressures.
Piping system: uPVC for low-pressure lines, SUS304/SUS316 stainless steel for high-pressure lines (Sch10 standard).
PLC control panel: 7″ touchscreen HMI for intuitive operation.
SS400 steel frame: Three-layer epoxy coating ensures rust resistance.
Electrical enclosure: Powder-coated steel with dual-layer doors for durability.
Automated periodic flushing: Automatic valves simplify maintenance.
High- and low-pressure sensors.
Flow indicators for permeate, reject, and recirculation.
Conductivity monitor for permeate stream.
Connections and power: JIS-10K flanges; 380–415V, 3-phase, 50Hz.
Chemical dosing pump: Supports antiscalant treatment for membrane longevity.

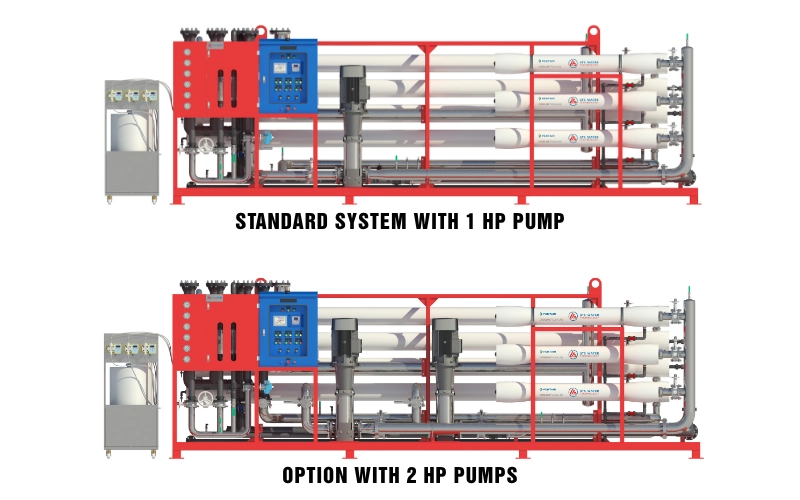

Cấu tạo của hệ thống RO công nghiệp ADES BRO8 — *Illustration of the ADES BRO8 RO system configuration*

2. Technical specifications of the ADES BRO8 RO system

Technical specifications are critical for evaluating and selecting the ADES BRO8 RO system to meet specific water treatment needs. Detailed specifications, including membrane count, permeate flow, and dimensions, are available as below:

MODEL	PERMEATE FLOW	NUMBER OF MEMBRANES	NUMBER OF PRESSURE VESSEL	DIMENSION (Length × Width × Height)	APPROXIMATE WEIGHT	RECOVERY
ADES-BRO8-007	7 m³/h	9	3	5.0 × 1.3 × 2.4 m	1,330 kg	75% (±5%)
ADES-BRO8-010	10 m³/h	12	3	6.0 × 1.3 × 2,4 m	1,640 kg
ADES-BRO8-015	15 m³/h	18	6	5.0 × 1.6 × 2.5 m	2,070 kg
ADES-BRO8-020	20 m³/h	24	6	6.1 × 1.6 × 2.5 m	2,470 kg
ADES-BRO8-030	30 m³/h	36	9	6.2 × 1.9 × 2.6 m	3,240 kg
ADES-BRO8-040	40 m³/h	45	9	7.2 × 1.9 × 2.2 m	3,910 kg
ADES-BRO8-050	50 m³/h	60	12	7.3 × 2.0 × 2.2 m	4,760 kg
ADES-BRO8-060	60 m³/h	75	15	7.5 × 2.2 × 2.6 m	5,730 kg
ADES-BRO8-075	75 m³/h	90	18	7.7 × 2.4 × 3.0 m	6,610 kg
ADES-BRO8-100	100 m³/h	120	24	7.9 × 2.8 × 3.0 m	8,360 kg

3. Advantages of the ADES BRO8 industrial RO system

Optimized for performance and reliability, the ADES BRO8 RO system delivers practical benefits for industrial water treatment:

Easy operation: Simple startup and user-friendly controls.
Fully automated: Ideal for industrial plants with minimal oversight.
Compact design: Fits in tight spaces or containerized setups.
Advanced TFN membranes: TFN technology from NanoH2O ensures efficient filtration.
Cost savings: Reduces energy and operational expenses.
Modular design: Supports upgrades and easy maintenance.
High capacity: Efficiently processes water at low inlet pressures.
Reliable components: International-standard parts ensure durability and safety.

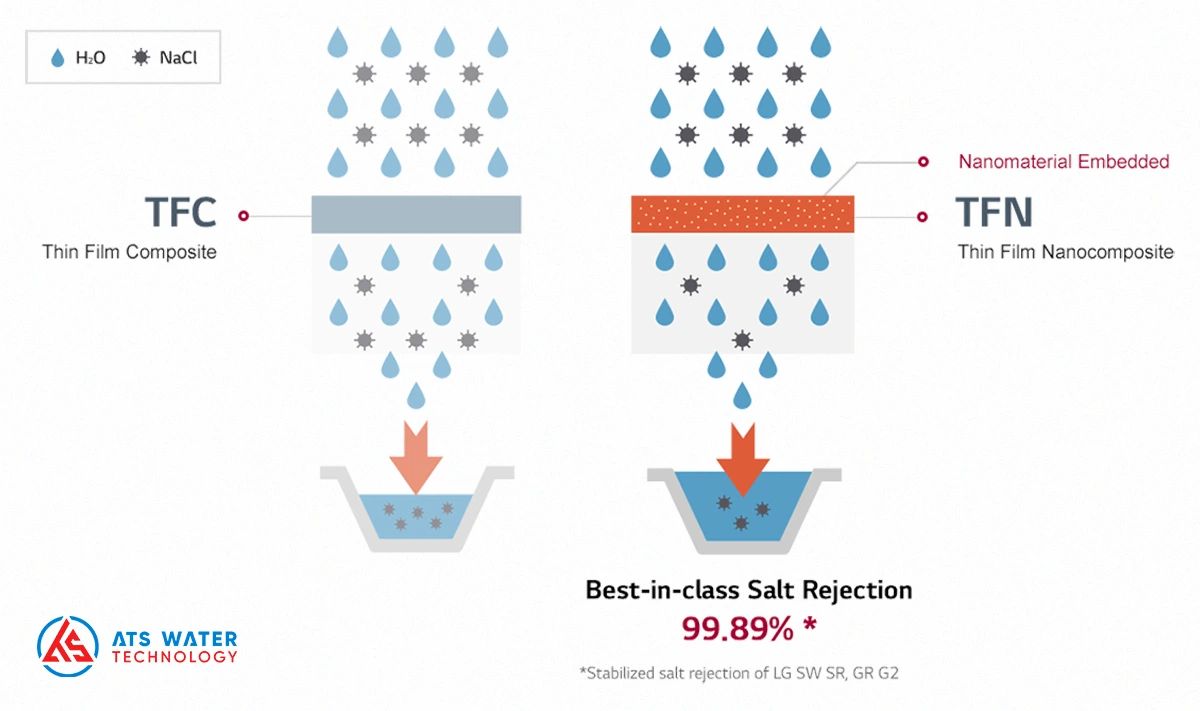

Ưu điểm của hệ thống RO công nghiệp ADES BRO8 — *The ADES BRO8 system utilizes advanced TFN membrane technology*

4. Applications of the ADES BRO8 industrial RO system

The ADES BRO8’s efficient filtration and flexible design make it ideal for diverse applications:

Ultrapure water: Supports electronics, pharmaceuticals, laboratories, and semiconductors.
Drinking water: Serves water treatment plants, hotels, schools, and hospitals.
Building water supply: Provides feedwater for apartments, commercial centers, and offices.
Custom solutions: Tailored for unique industrial water treatment needs.

Ứng dụng của hệ thống lọc nước RO công nghiệp ADES BRO8 — *Key applications of the ADES BRO8 industrial RO system*

5. ATS Water Technology – Designer and supplier of the ADES BRO8 RO system

ATS Water Technology Co., Ltd. brings years of expertise, delivering hundreds of RO systems across Vietnam and Southeast Asia. Our skilled engineers, professional design process, and cutting-edge technology ensure reliable, cost-effective solutions.

The ADES BRO8 RO system is our flagship RO system, built to meet real-world demands. ATS Water Technology offers customizable systems, detailed technical documentation, after-sales support, and lifetime technical assistance.
