BW 400 AFR G2
The NanoH2O BW 400 AFR G2 is a premium anti-fouling brackish water reverse osmosis (BWRO) membrane element with a 34 mil low differential pressure (low-dP) feed spacer. This design minimizes pressure drop (ΔP) and optimizes hydrodynamics across the active membrane surface. It delivers a stabilized salt rejection of 99.7% and a nominal permeate flow rate of 11,500 GPD (43.5 m3/day). The BW 400 AFR G2 enhances permeate water purity, reduces Clean-In-Place (CIP) chemical cleaning frequency, lowers specific energy consumption, and extends overall system service life.
PRODUCT FEATURES
- Features advanced Thin-Film Nanocomposite (TFN) membrane technology to maximize permeate flux and solute rejection stability.
- Utilizes a 34 mil low-dP feed spacer to enhance feed channel hydrodynamics, reduce differential pressure drops (ΔP), and mitigate foulant/particulate deposition.
- Delivers exceptional fouling resistance, significantly decreasing CIP cleaning frequency and extending element operational life.
- Achieves up to 99.7% stabilized salt rejection, guaranteeing high-purity permeate water across varying feed conditions.
- Optimized surface flow geometry improves overall hydraulic efficiency across multi-stage RO skids.
- Reduces specific energy consumption and lowers Total Cost of Ownership (TCO) for industrial water treatment operations.
- Certified under NSF/ANSI/CAN 61, meeting stringent public health and safety criteria for drinking water system components.
See more
SPECIFICATION
-
Permeate flow rate
11,500 GPD (43.5 m3/day)
-
Stabilized salt rejection
99.7%
-
Minimum salt rejection
99.6%
-
Active membrane area
400 ft2 (37 m2)
-
Feed spacer thickness
34 mil (low dP)
See more
The BW 400 AFR G2 RO membrane element is an ideal solution for water treatment facilities demanding high permeate purity, consistent operational reliability, and reduced OPEX. Below are the comprehensive technical specifications, operating limits, key features, performance benefits, and practical industrial applications for the BW 400 AFR G2.
1. Technical specifications of BW 400 AFR G2 RO membrane
Technical specifications allow process engineers to evaluate if an RO element matches specific hydraulic and water quality requirements. The BW 400 AFR G2 is designed with an active membrane area of 400 ft2, high salt rejection capabilities, and robust flux rates. It is tailored for diverse industrial process water and municipal feed applications.
| SPECIFICATION | VALUE |
|---|---|
| Permeate flow rate | 11,500 GPD (43.5 m3/day) |
| Stabilized salt rejection | 99.7% |
| Minimum salt rejection | 99.6% |
| Active membrane area | 400 ft2 (37 m2) |
| Feed spacer thickness | 34 mil (low dP) |
2. Operating specifications of BW 400 AFR G2 RO membrane
Operating within manufacturer-recommended parameters is essential to maintain separation efficiency, control biological and inorganic fouling, and extend membrane longevity. The standard operating limits for the BW 400 AFR G2 are outlined below.
| SPECIFICATION | VALUE |
|---|---|
| Maximum applied pressure | 600 psi (41.3 bar) |
| Maximum chlorine concentration | < 0.1 ppm |
| Maximum operating temperature | 45°C (113°F)/ |
| pH range (continuous operation) | 2 – 11 |
| pH range (cleaning) | 1 – 13 |
| Maximum feed water turbidity | 1.0 NTU |
| Maximum feed water SDI15 | 5.0 |
| Maximum feed flow | 75 gpm (17 m3/h) |
| Maximum pressure drop (ΔP) for each element | 15 psi (1.0 bar) |

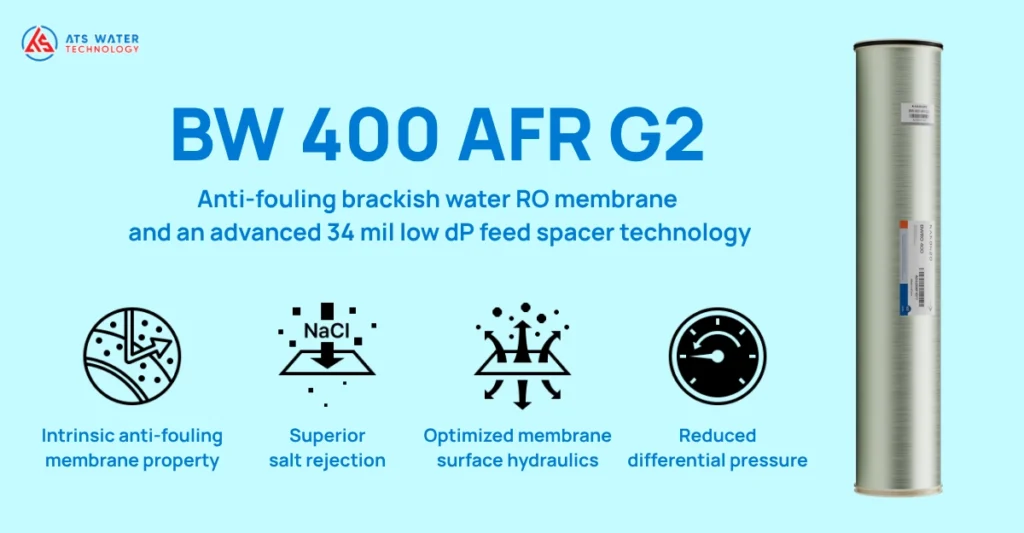

3. Key features of BW 400 AFR G2 membrane elements
The BW 400 AFR G2 brackish water RO membrane incorporates a 34 mil low-dP feed spacer and advanced foulant-resistant surface chemistries to maximize system productivity. Key engineering features include:
- Advanced membrane chemistry: Integrates Thin-Film Nanocomposite (TFN) technology to optimize flux rates and solute rejection.
- Exceptional fouling and scaling resistance: Minimizes organic and inorganic foulant adhesion on the active layer, curbing flux decline and maintaining stable operating pressures.
- High salt rejection: Achieves 99.7% stabilized salt rejection (99.6% minimum), ensuring stringent permeate purity across various treatment trains.
- 34 mil low-dP feed spacer: Enhances feed channel flow distribution, significantly lowering differential pressure losses (ΔP), suppressing biofouling dead zones, and improving overall hydraulic performance.
- High permeate flow capacity: Delivers 11,500 GPD (43.5 m3/day), meeting the demands of large-scale industrial and municipal treatment trains.
- NSF/ANSI/CAN 61 certification: Verified compliance with international public health standards for drinking water system components.
4. Advantages of BW 400 AFR G2 RO membrane elements
In addition to delivering high permeate purity, the BW 400 AFR G2 optimizes plant operational efficiency and reduces OPEX. Combining anti-fouling surface properties, a 34 mil low-dP feed spacer, and high salt rejection, it enhances process reliability and prolongs element service life. Primary operational benefits include:
- Incorporation of next-gen TFN technology: Boosts water permeability without compromising salt rejection efficiency.
- Guaranteed permeate purity: Maintains up to 99.7% stabilized salt rejection to satisfy strict process water and boiler feed specifications.
- Reduced cleaning frequency: Lower foulant accumulation reduces CIP chemical use, minimizes downtime, and cuts routine maintenance labor.
- Extended membrane service life: Sustains long-term operational stability and reduces element replacement frequency over plant life cycles.
- Energy-efficient operation: The 34 mil low-dP feed spacer minimizes feed-to-concentrate pressure drop (ΔP) and lowers booster pump energy consumption.
- Reduced total cost of ownership (TCO): Combined savings in specific energy consumption, CIP chemicals, routine labor, and membrane replacement costs optimize overall lifecycle economics.
- NSF/ANSI/CAN 61 certification: Assures project owners and operators of compliance with rigorous international material safety standards for potable water production.
5. Certifications of BW 400 AFR G2
BW 400 AFR G2 RO membrane elements hold full certification under NSF/ANSI/CAN 61, satisfying strict health and safety criteria for components contacting drinking water. This accreditation verifies that element construction materials do not leach harmful contaminants into permeate water, providing project owners and plant managers with complete regulatory assurance in potable water projects.
Deploying NSF/ANSI/CAN 61-certified RO elements enhances facility compliance. It fulfills technical bid requirements across municipal water utilities, commercial drinking water applications, and industrial food and beverage plants enforcing strict water quality standards.
6. Field applications of BW 400 AFR G2 RO elements
Thanks to its superior foulant resistance, high salt rejection, and large permeate flow capacity, the BW 400 AFR G2 is widely deployed across modern industrial and municipal treatment plants. It is particularly recommended for installations seeking stable operation, lower CIP frequency, and maximum ROI.
Key applications for BW 400 AFR G2 RO elements include:
- Industrial process water treatment: Supply high-purity water for power generation, microelectronics, chemical manufacturing, and general manufacturing while reducing OPEX through anti-fouling operation.
- Municipal potable water systems: Deployed in drinking water plants to ensure permeate compliance with drinking water regulations.
- Wastewater reuse and tertiary treatment: Ideal for water reclamation trains (e.g., MBR filtrate polished via RO), maximizing water recovery rates and minimizing freshwater intake.
- ZLD and MLD systems (Zero / Minimal Liquid Discharge): Serve as a reliable brine concentration element in ZLD/MLD process trains, handling high-TDS feeds and maximizing recovery before thermal evaporation steps.
7. ATS Water Technology – Authorized distributor of genuine BW 400 AFR G2 RO membranes
Sourcing genuine RO membrane elements from an experienced technical engineering partner is vital to maintain design recovery rates, prevent downtime, and optimize plant lifecycle economics.
ATS Water Technology Co., Ltd. is an authorized distributor of NanoH2O membrane products in Vietnam, supplying high-performance RO and Nanofiltration (NF) membranes alongside advanced water treatment solutions across industrial sectors.
Leveraging deep engineering expertise in water treatment operations, ATS Water Technology supports clients beyond supply, assisting with feed water analysis, engineering consultation, projection software modeling, and custom membrane element selection based on specific site conditions.
The BW 400 AFR G2 is one of our flagship anti-fouling elements suited for industrial process water, municipal drinking supply, wastewater reclamation, and ZLD/MLD applications. We provide complete technical datasheets, material certificates, and compatibility assessments to ensure seamless retrofitting or original system integration.
In addition to product supply, ATS Water Technology delivers comprehensive engineering consulting, process troubleshooting, and manufacturer-aligned operating guidelines to maximize system efficiency, reduce CIP frequency, and extend RO element service life.
Contact ATS Water Technology today to consult with our application engineers and obtain optimized BW 400 AFR G2 RO membrane solutions tailored to your operational needs.
