X-FLOW Compact 55G

Rated 4.5/5 based on 17 customer reviews
Product Line: COMPACT 55G
|
Type: HOLLOW FIBER
|
Brand: UF Membranes
|
SKU: X-FLOW Compact 55G-EN

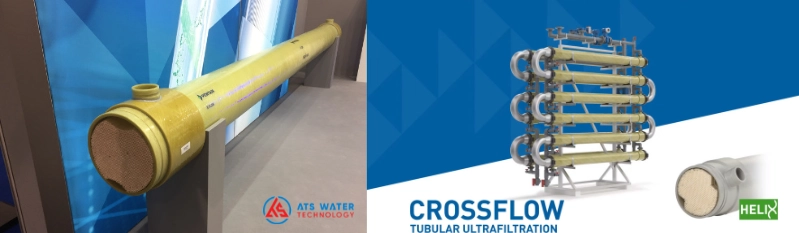

ATS Water Technology offers the Compact 55G, which is a 10" x 4 meter membrane element and belongs to the X-Flow Compact family. A GRE module widely used in the treatment of various types of wastewater. This size offers high-efficiency opportunities and versatility in treatment concepts and serves as retrofit to boost plant performance. The core of the Compact 55G are the proven X-Flow tubular UF membranes, with a mean pore size of 30 nm.

 COMPACT 55G
Pentair X-Flow Helix Compact 27 ATS WATER
Datasheet Compact 55G

FEATURES

  • Hydrophilic tubular polyvinylidene
  • Structure asymmetric
  • Mean pore size of 30 nm
  • Developed for use in large-scale processes for water purification
  • High performance and a very good antifouling behaviour
  • Membrane elements can be backflushed for efficient membrane cleaning resulting in a higher average product flux
  • Available with the X-Flow Helix technology, to enhance flux and herewith performance by providing enhanced mixing and efficient removal of the cake

FUNCTIONAL DESCRIPTION

X-FLOW COMPACT 55G MEMBRANE MODULES

The Compact 55G is a X-Flow tubular UF membrane with a mean pore size of 30 nm.

Key specifications

  • Temperature range: 0-40°C
  • Maximum operating pressure: 6 bar

DIGITAL CONFIGURATION (CROSSFLOW)

FIELDS OF APPLICATION

The X-Flow Compact 55G is widely used in the treatment of all kinds of wastewaters. The Compact 55G is a valuable addition to the Compact Family and particularly fit for applications such as MBRs, leachate treatment and effluent recovery.

The membranes deliver instant high quality due to small membrane pore size, low operational cost due to high permeability and the lowest TCO (Total Cost of Ownership) due to Helix.

SPECIFICATIONS

 COMPACT 55G
Pentair X-Flow Helix Compact 27 ATS WATER
Membrane surface area55 m²
Module dimensions (dxl)10 inch x 4000 mm
Housing materialGlass fibre reinforced epoxy
Membrane materialPVDF
Hydraulic membrane diameter8 mm
Nominal pore size30 nm
pH-range1-11
Helix technologyYes

To learn more about other X-Flow membrane modules and texture configurations, please click here.

In case Compact 55G modules are available and need to be replaced, contact ATS Water technology for advice on the best solution.
