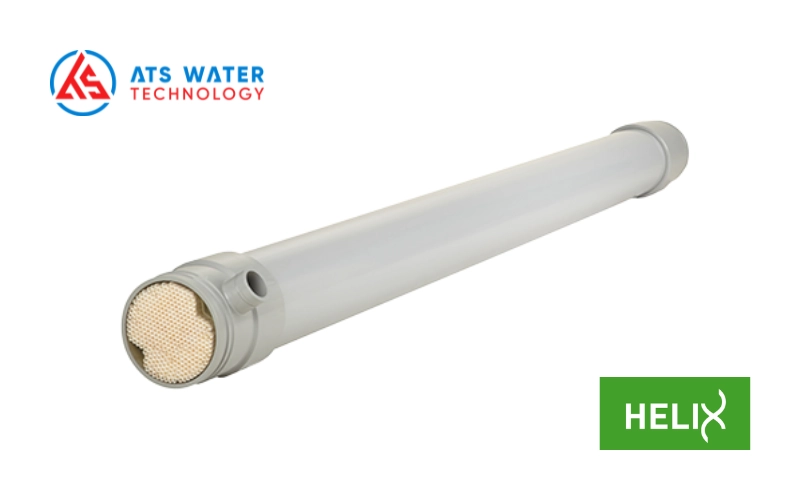

X-FLOW COMPACT 33

Rated 4.5/5 based on 17 customer reviews
Product Line: COMPACT 33
| |
Brand: UF Membranes

ATS Water Technology offers the Compact 33, which is a tubular 5.2 mm ultrafiltration membrane very well suited for the separation of biological sludge or any other high solids application in which high effluent quality is required. Separating at 0,03 micron, this membrane filter allows only water and dissolved matter to pass, rejecting everything that is undissolved. The filtrate can either be used directly in many applications, or be fed into another (RO) treatment system to remove the dissolved matter. The construction of the Compact 33 allows for backflushing from filtration side to feed side, a cleaning process applied in various heavy-duty operations.

 COMPACT 33
Pentair X-Flow Helix Compact 27 ATS WATER
COMPACT 33G
Pentair X-Flow Helix Compact 27 ATS WATER
Datasheet Compact 33
Datasheet Helix

FEATURES

  • Strong double-supported membrane tubes
  • Backflushing from filtration side to feed side
  • Typically horizontally mounted
  • Tight cut-off at 0,03 micron
  • Applicable to total suspended solids levels up to 15 g/l biomass
  • High tolerance to hypochlorite cleaning
  • High flux rates
  • Easily interchangeable
  • Also available with the X-Flow Helix technology, to  enhance flux and herewith performance by providing enhanced mixing and efficient removal of the cake.

FUNCTIONAL DESCRIPTION

FOR HIGH SOLIDS APPLICATIONS

The Compact 33 holds 5.2 mm tubular UF membranes, capable in treating streams with solid concentrations up to 15,000mg/l. The module can be applied in a Crossflow configuration. With operations in the typical cross-flow mode, and given the limited capacity per module, multiple modules can be connected in series to create the required capacity.

Our engineers can support you in determining the ideal plant size, number of membranes, best setup and configuration for your specific purposes.

GENERAL

The Compact 33 is a tubular ultrafiltration membrane for cross-flow mode in MBR's and other high solid applications.

KEY SPECIFICATIONS

  • Temperature range: 0-60°C
  • Maximum operating pressure: 8 bar

PROCESS CHARACTERISTICS

  • High flux rates
  • Easily interchangeable

CROSSFLOW CONFIGURATION

CROSSFLOW CONFIGURATION COMPACT 33

FIELDS OF APPLICATION

The Compact 33 finds its use primarily in the separation of oil-water mixtures from produced water and in high solids applications, such as separating clean water from biological sludge in membrane bioreactors (MBR’s). The filtrate will be free from solids of any kind and typically have an SDI of < 3, making filtration with the Compact 33 a good pretreatment method for Reverse Osmosis if all dissolved matter needs to be taken out.

The Compact 33 can be used for the following applications:

  • Sludge separation in Membrane bioreactors (MBR’s)
  • Produced water in oil & gas, mining, etc.
  • Purification of yeast solutions
  • RO pretreatment of feed waters high in suspended solids

SPECIFICATIONS

 COMPACT 33
Pentair X-Flow Helix Compact 27 ATS WATER
COMPACT 33G
Pentair X-Flow Helix Compact 27 ATS WATER
Membrane surface area33 m²33 m²
Module dimensions (dxl)8 inch x 3 meter8 inch x 3 meter
Housing materialPVC-CGRP housing
Membrane material    Reinforced PVDFReinforced PVDF
Hydraulic membrane diameter5.2 mm5.2 mm
Nominal pore size    30nm30nm
pH-range2-112-11
Chlorine resistance250,000ppm hours @ pH ≥10250,000ppm hours @ pH ≥10



To learn more about other X-Flow membrane modules and texture configurations, please click here.

In case COMPACT 33 modules are available and need to be replaced, contact ATS Water technology for advice on the best solution.
